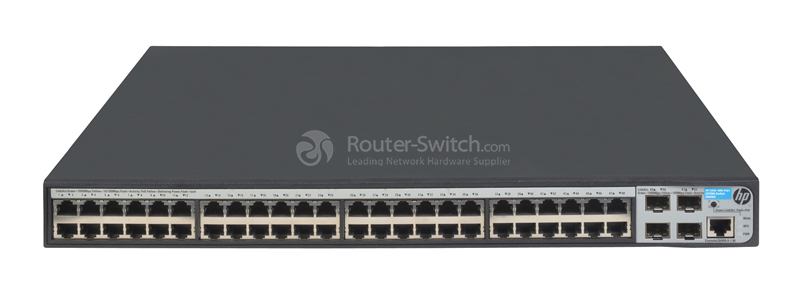

HPE OfficeConnect 1920 Series switches are advanced Gigabit web managed “smart” switches supporting Layer 3 static routing, Access Control Lists, 802.1X network login. This JG928A has 48 x RJ-45 auto-negotiating 10/100/1000 PoE ports plus four additional (non combo) Gigabit SFP ports for fiber connectivity. Quick Spec Figure 1 shows the appearance of HPE JG928A. Table 1 shows the quick spec. Product Code JG928A Type HPE OfficeConnect 1920 48G PoE (370W) Switch Ports · 48 RJ-45 auto-negotiating 10/100/1000 PoE ports · 4 SFP 1000 Mbps ports · Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 1000BASE-X SFP ports, or a combination PoE capability 370 W PoE Throughput up to 77.4 Mpps Routing/switching capacity 104 Gbps Dimensions (W x D x H) 17.32 x 17.32 x 1.73 in Weight 9.48 lb Product Details Figure 2 shows the front panel of HPE JG928A. Note: ① 48 × RJ-45 auto-negotiating 10/100/1000 ports ② 4 × SFP 1000 Mb/s ports ③ Console port ④ Copper port mode LED, RPS power LED and Power LED ⑤ Copper port LED switching button Figure 3 shows the back panel of HPE JG928A. Note: ① DC power receptacle ② AC power connector ③ Grounding screw Compare to Similar Items Table 2 shows the comparison. Product Code JG924A JG925A JG926A JG927A JG928A Type HPE 1920-24G Switch HPE 1920-24G-PoE (180W) Switch HPE 1920-24G-PoE (370W) Switch HPE 1920-48G Switch HPE 1920 48G PoE (370W) Switch PoE power N/A 180W 370W N/A 370W Throughput 41.7 Mp/s (64-byte packets) 41.7 Mp/s (64-byte packets) 41.7 Mp/s (64-byte packets) 77.4 Mp/s (64-byte packets) 77.4 Mpps (64-byte packets) Routing/Switching capacity 56 Gb/s 56 Gb/s 56 Gb/s 104 Gb/s 104 Gbps Get more information Do you have any question about the JG928A? Contact us now via Live Chat or
[email protected]. JG928A Specification JG928A Specifications Type HPE OfficeConnect 1920 48G PoE (370W) Switch Ports · 48 RJ-45 auto-negotiating 10/100/1000 PoE ports · 4 SFP 1000 Mbps ports · Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 1000BASE-X SFP ports, or a combination Memory and processor MIPS @ 650 MHz 32 MB flash Packet buffer size: 12 Mb 128 MB SDRAM Latency 100 Mb Latency: < 5 µs 1000 Mb Latency: < 5 µs Throughput up to 77.4 Mpps Routing/switching capacity 104 Gbps PoE capability 370 W PoE Management features IMC – Intelligent Management Center Limited command-line interface Web browser SNMP manager IEEE 802.3 Ethernet mib Input voltage 100 – 240 VAC, rated (depending on power supply chosen) Operating temperature range 0 to 40°C Operating humidity range 10 to 90% (noncondensing) Power consumption 492 W (maximum) Minimum dimensions (W x D x H) 17.32 x 17.32 x 1.73 in Weight 9.48 lb
