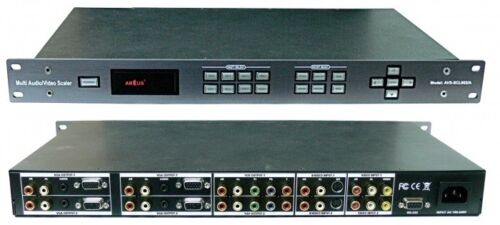

Switch ABtUS AVS-SCL802 / A – converts the input video signal (composite, S-Video, component and VGA signals) in the output format VGA with the necessary signal resolution. Size 430x240x88 mm, weight 1350 g. The AVS-SCL802 \ A switcher is used to create multimedia systems in education and business. This device converts the input video signal (namely, composite, S-Video, component and VGA signals) to a VGA output format with the required signal resolution – usually corresponding to the actual resolution of the video projector or monitor matrix. It is in this case that the maximum quality of the displayed signal is achieved. The output of this switch is a 1-2 VGA signal splitter. The switch also allows you to adjust the level of the audio signal. The instrument is controlled from the front panel, by means of the IR remote control or by commands on the RS-232 input. The device supports the output resolution up to 1280 * 1024 points. The device is made in a 19-inch case and is designed for installation in a standard 19-inch rack. Model AVS-SCL802 \ A Video Inputs 2 x RCA (Composite); 2xS-Video (Y \ C); 2xYUV (3 RCA Component); 2xVGA input (xD-Sub 15 pin) Audio Inputs 6x2RCA (audio L & R); 2xAudio (3.5 mm stereo mini-Jack); 1xRS-232 input (xD-Sub 9 pin) Outputs (Video and Audio) 2xVGA output (xD-Sub 15 pin); 2xAudio (3.5 mm stereo mini-Jack) OSD (On Screen Display) Yes, language – English Supported VGA input resolution 640×480, 800×600, 1024×768, 1280×1024, 60 \ 75 Hz Maximum output resolution 1280×1024, 60 \ 75 Hz Selecting input and output Buttons on the front panel, IR remote control or by commands RS-232 Volume control There is, a digital adjustment, 32 steps Food 220V, 50Hz Housing material metal Overall dimensions and weight 430x240x88 mm, 1350 grams
