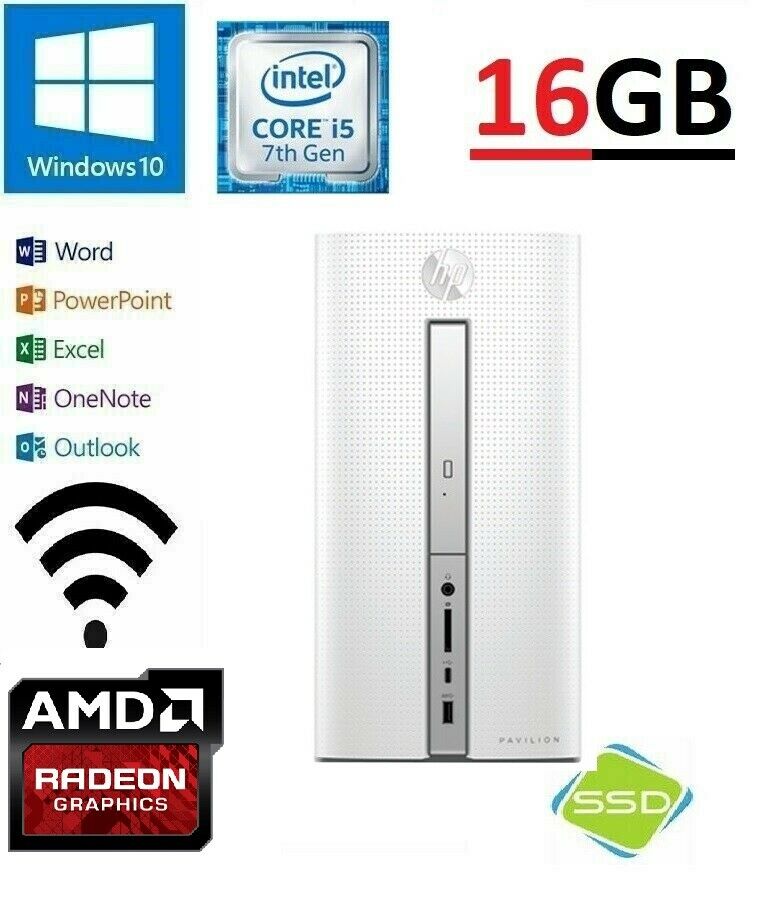

POWER Power supply 300 W Processor Processor frequency 3 GHz Processor family 7th gen Intel® Core™ i5 Processor model i5-7400 Processor cores 4 Processor boost frequency 3.5 GHz Processor socket LGA 1151 (Socket H4) Processor cache 6 MB Processor cache type Smart Cache System bus rate 8 GT/s Processor threads 4 Number of processors installed 1 PCI Express slots version 3.0 Processor lithography 14 nm Processor operating modes 64-bit Stepping B0 Bus type DMI3 Processor codename Kaby Lake Thermal Design Power (TDP) 65 W Processor series Intel Core i5-7400 Desktop Series Maximum number of PCI Express lanes 16 PCI Express configurations 1×16,1×8 2×4,2×8 Tjunction 100 °C Maximum internal memory supported by processor 64 GB Memory types supported by processor DDR3L-SDRAM,DDR4-SDRAM Memory clock speeds supported by processor 1333,1600,2133,2400 MHz Memory channels supported by processor Dual ECC supported by processor N Memory voltage supported by processor 1.35 V Memory Internal memory type DDR4-SDRAM Maximum internal memory 16 GB Memory slots 2x DIMM Memory clock speed 2400 MHz Internal memory 16 GB Memory layout (slots x size) 2 x 8 GB Storage Total storage capacity 2000 GB 128GB NVMe M.2 SSD Storage media HDD Card reader integrated Y Hard drive speed 7200 RPM Number of hard drives installed 1 Hard drive capacity 2000 GB Hard drive interface Serial ATA SSD Intel® Optane™ Memory module installed Y Intel® Optane™ Memory module capacity 16 GB Graphics Discrete graphics adapter model AMD Radeon R5 435 Discrete graphics adapter memory 2 GB On-board graphics adapter model Intel® HD Graphics 630 On-board graphics adapter base frequency 350 MHz On-board graphics adapter dynamic frequency (max) 1000 MHz On-board graphics adapter DirectX version 12.0 On-board graphics adapter ID 5912 Maximum on-board graphics adapter memory 64 GB On-board graphics adapter OpenGL version 4.4 Discrete graphics memory type GDDR5 On-board graphics adapter Y Number of displays supported (on-board graphics) 3 Discrete graphics adapter Y Software Operating system installed Windows 10 /office 2007/adobe reader/vlcd Operating system architecture 64-bit Networking Ethernet LAN Y Ethernet LAN data rates 10,100,1000 Mbit/s Wi-Fi Y Wi-Fi standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Bluetooth Y Bluetooth version 4.2 Top Wi-Fi standard IEEE 802.11ac Ports & interfaces USB 2.0 ports quantity 2 USB 3.0 (3.1 Gen 1) Type-A ports quantity 3 DVI port N HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Microphone in Y VGA (D-Sub) ports quantity 1 USB 3.0 (3.1 Gen 1) Type-C ports quantity 1 Line-out Y Line-in Y Design Chassis type Tower Refurbished Y Product colour White Performance Product type PC Audio output channels 5.1 channels Motherboard chipset Intel® H270 Processor special features Intel 64 Y Enhanced Intel SpeedStep Technology Y Embedded options available N Intel Clear Video Technology Y Intel VT-x with Extended Page Tables (EPT) Y Thermal Monitoring Technologies Y Intel Trusted Execution Technology N Execute Disable Bit Y Intel Enhanced Halt State Y Processor package size 37.5 x 37.5 mm Supported instruction sets AVX 2.0,SSE4.1,SSE4.2 Processor code SR32W CPU configuration (max) 1 Intel Virtualization Technology for Directed I/O (VT-d) Y Intel Virtualization Technology (VT-x) Y Intel TSX-NI Y Idle States Y Intel Stable Image Platform Program (SIPP) N Intel Software Guard Extensions (Intel SGX) Y Scalability 1S Thermal solution specification PCG 2015C Conflict Free processor Y Intel® Hyper Threading Technology (Intel® HT Technology) N Intel® Clear Video HD Technology (Intel® CVT HD) Y Intel® AES New Instructions (Intel® AES-NI) Y Intel® Clear Video Technology for Mobile Internet Devices (Inte Y Intel® Identity Protection Technology (Intel® IPT) Y Intel® Secure Key Y Intel® OS Guard Y Intel® Turbo Boost Technology 2.0 Intel® Quick Sync Video Technology Y Processor ARK ID 97147 Intel® InTru™ 3D Technology Y Weight & dimensions Width 315 mm Depth 163 mm Height 307 mm Weight 5.7 kg Packaging content Display included N Optical drive Optical drive type DVD-RW Optical drives quantity 1 General Product Family HP Computers Notebooks & Tablets HP Pavilion 570-p055a Desktop PC Product Specifications Motherboard Lubin Figure : Lubin motherboard top view Form factor: Customized: 20.5×22.0 cm (8.1×8.7 in) Chipset: H270 Memory sockets: 2 x DDR4 Processor socket: LGA 1151 Expansion Slots: One PCI-E x16 socket One M.2 socket 1, key A One M.2 socket 3, key M For more details, see Lubin motherboard specifications. Processor Intel Core i5-7400 CPU speed: 3.0 GHz (max turbo boost – 3.5 GHz) CPU cores: 4 CPU Cache: 6 MB TDP: 65 W Socket: LGA 1151 Processor upgrade information TDP: Up to 65 W Socket type: LGA 1151 Motherboard supports the following processor upgrades: Processor TDP Integrated Graphics Intel Core i7-7700 (Kabylake) 3.6 GHz Quad Core 65 W Intel HD Graphics 630 Intel Core i5-7400 (Kabylake) 3.0 GHz Quad Core 65 W Intel HD Graphics 630 Intel Core i3-7100 (Kabylake) 3.9 GHz Dual Core 51 W Intel HD Graphics 630 Intel Pentium G4560 (Kabylake) 3.5 GHz Dual Core 54 W Intel HD Graphics 610 Intel Celeron G3930 (Kabylake) 2.9 GHz Dual Core 51 W Intel HD Graphics 610 Intel Core i3-6100 (Skylake) 3.7 GHz Dual Core 51 W Intel HD Graphics 530 Intel Pentium G4400 (Skylake) 3.3 GHz Dual Core 54 W Intel HD Graphics 510 Intel Celeron G3900 (Skylake) 2.8 GHz Dual Core 65 W Intel HD Graphics 510 Memory 8 GB Amount: 8 GB Speed: PC4-19200 MB/s Type: DDR4-2400 Memory upgrade information Dual channel memory architecture Two DDR4 UDIMM (288-pin) sockets Supports up to PC4-19200 (DDR4-2400) Supports 2 GB, 4 GB, and 8 GB UDIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB (unbuffered) on 64-bit computers NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video graphics AMD Radeon R5 435 (2 GB) Form Factor: Full-height PCB with ATX Dimensions: 4 Layer / (4.5 in x 2.7 in) Memory size: 2 GB (64-bit) Memory type: DDR5 Total power consumption: <30 W max Integrated graphics Integrated Intel HD Graphics NOTE: Integrated video is not available if a graphics card is installed. Sound/Audio Integrated audio Audio Codec: ALC3863-CG High Definition (Azalia) 5.1 channel audio support NOTE: The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound. Audio jack presence detection NOTE: An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound. NOTE: Integrated audio is not available if a sound card is installed. Networking Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology Interface: M.2 Transmission standards: 802.11 a/b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8161 Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Ethernet Hard drives 2 TB Size: 2 TB Interface: SATA Rotational speed: 7200 rpm 16 GB NVMe M.2 TLC Solid State Drive Size: 16 GB Interface: M.2 Type: TLC Solid State Drive CD/DVD disc drive DVD Writer Data transfer rates up to 3,600 KB/s (CD read/write) Data transfer rates up to 10,800 KB/s (DVD read/write) Formats/Disc types Write speeds Read speeds DVD DVD-ROM SL N/A up to 8x DVD-ROM DL N/A up to 8x DVD R SL up to 8x up to 8x DVD R DL up to 6x up to 8x DVD-R SL up to 8x up to 8x DVD-R DL up to 6x up to 8x DVD RW up to 8x up to 8x DVD-RW up to 6x up to 8x CD CD-R up to 24x up to 24x CD-RW up to 10x up to 24x CD-ROM N/A up to 24x Memory card reader 3-in-1 memory card reader Figure : Memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Computer case Chassis Height: 30.71 cm (12.09 in) Width: 16.31 cm (6.42 in) Depth: 39.50 cm (12.40 in) Weight 5.70 kg (12.57 lb) – without packaging Power supply Internal 300 W power supply 300 W internal E6 Bronze efficiency power supply Active efficiency Bronze level: 85% I/O ports Front I/O ports USB 3.0: 1 USB 3.0-Type C: 1 Headphone/Microphone: 1 Back I/O ports NOTE: The configuration might differ depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality. Keyboard, mouse and input devices Titles that shipped with PC NOTE: HP provides basic support for software that comes with the computer. For in-depth feature assistance, refer to the help section in the software or on the software vendor’s Web site. Software Category Software Title Recovery Manager: Program Reinstallation Operating System Microsoft Windows 10 Home (64-bit) No Entertainment, Music & Games Booking.com CyberLink Power Media Player HP Audio Switch HP Games Netflix Solitaire 5.1 Surround Sound (simulated through headphones) No Yes Yes No No No No Productivity Dropbox HP Jumpstart HP Orbit No No Yes Imaging, Photography, Video & Film CyberLink PowerDirector HP ePrint Yes No Security McAfee LiveSafe (30-day subscription) No Support HP Documentation HP PC Hardware Diagnostics UEFI HP Support Assistant Yes Yes Yes Recovery HP Recovery Manager No Browser Microsoft Edge No
